Включение-Выключение через пульт ИК (Tasmota-Home-Assistant)

В Новых версия Tasmota Hash-поменяли на-Data

value_template: '{{ value_json[''IrReceived''].Data }}'

- id: '1635253773568'
  alias: ПРОВЕРКА КНОПКИ
  description: ''
  trigger:
  - platform: mqtt
    topic: tele/romikETH/RESULT
    value_template: '{{ value_json[''IrReceived''].Hash }}'
    payload: '0x3D4C1879'
  condition: []
  action:
  - service: switch.toggle
    target:
      entity_id: switch.romiketh1
  mode: single

Все можно прописать в самом Home-Assistant.

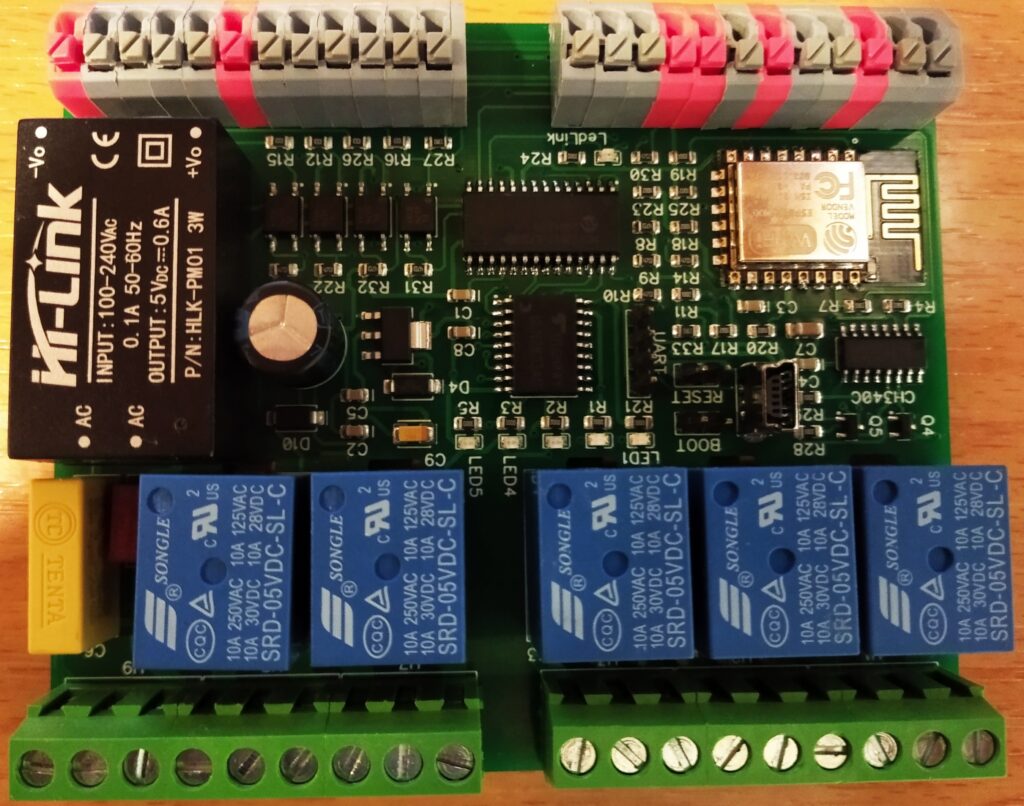

5-Relay Контролер для умного дома Ver 1.0 (Tasmota,HomeAssistant)

Схема.

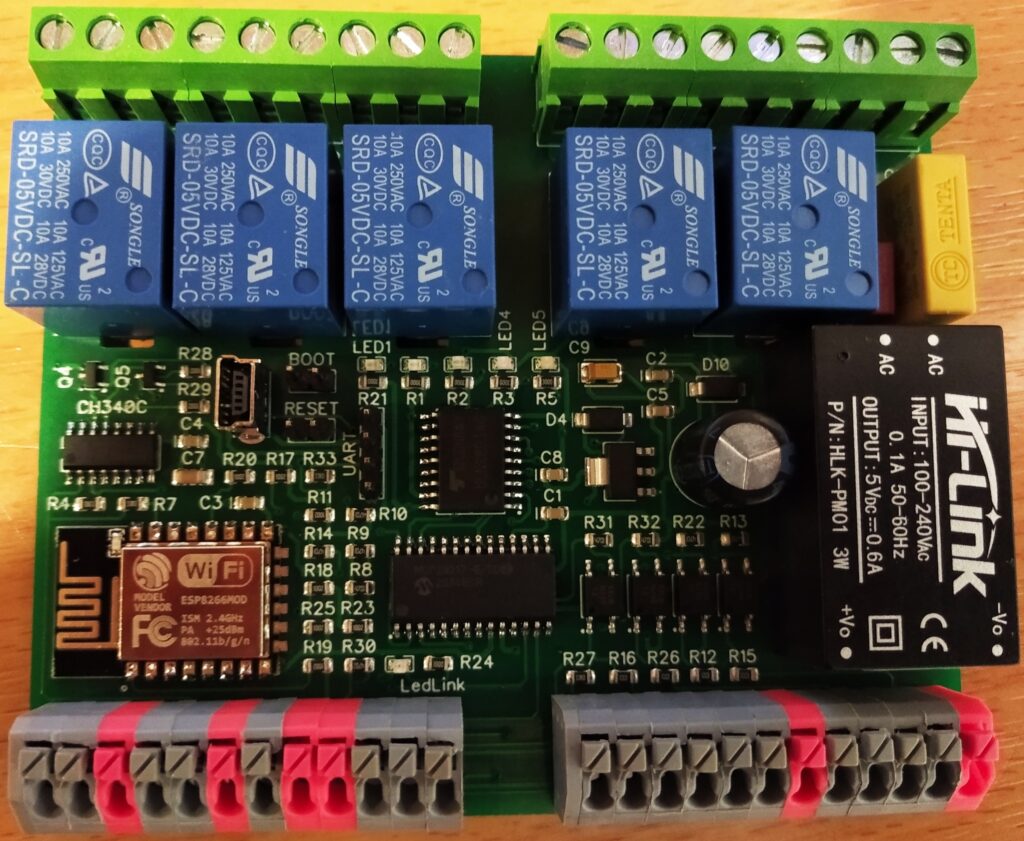

Порты реле внизу.

Порты выхода Реле 1-5 Реле и просто 6-7-8 порты Output 5V.

backlog sensor29 0,5,0; sensor29 1,5,0; sensor29 2,5,0; sensor29 3,5,0
backlog sensor29 4,5,0; sensor29 5,5,0; sensor29 6,5,0; sensor29 7,5,0

backlog SetOption36 0;SetOption65 1;wificonfig 4; SetOption59 1; TimeZone +3;TelePeriod 150

Входы:

backlog sensor29 8,2,1; sensor29 9,2,1; sensor29 10,2,1; sensor29 11,2,1

Правила пример:

on event#MCPINT_D11=1 do power4 on endon on event#MCPINT_D11=0 do power4 off endon
on event#MCPINT_D10=1 do power3 on endon on event#MCPINT_D10=0 do power3 off endon
on event#MCPINT_D9=1 do power2 on endon on event#MCPINT_D9=0 do power2 off endon
on event#MCPINT_D8=1 do power1 on endon on event#MCPINT_D8=0 do power1 off endon

При рестарте ВЫКЛЮЧИТЬ ВСЕ РЕЛЕ:

ON system#boot DO Power0 0 ENDON

Схема: DipTrace Schematic – 5-Relay-Version-1.0.dch Лист 1
